XL York Electric Start Kit - V-Twin 32-1642 - Ironhead 1967-1980

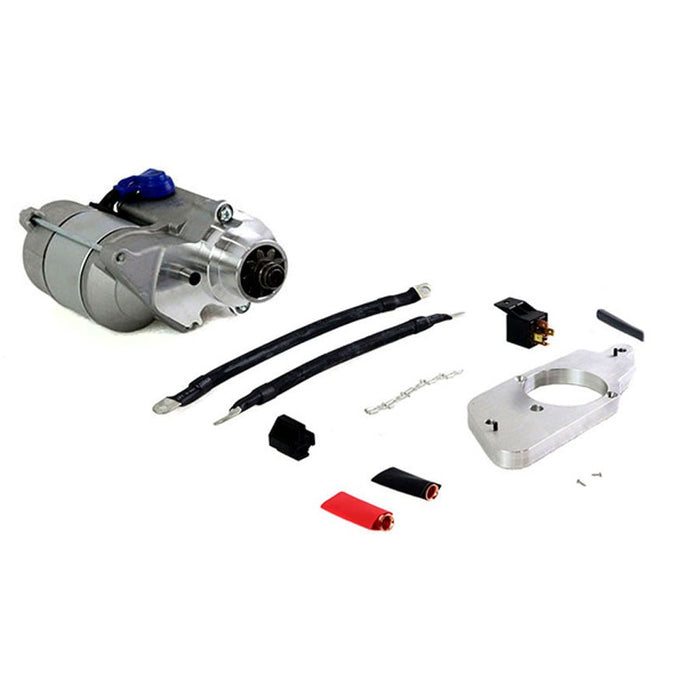

Electric starter kit includes a 1.4kw compact starter with integral Bendix solenoid and gear reduction. Kit also includes mount plate and 2 gauge cable set.

Natural finish starter and starter housing bolts directly to original starter drive port. *NOTE: Requires (2) m5.08 x 2 inch countersunk flathead screws. *NOTE: Check clearance between sprocket cover oil tank and battery tray. Check clutch drum must have 62 tooth ring gear installed available separately. Starter motor accepts direct push button included. Clutch drum with starter ring gear installed is available separately V-Twin 1971-1980 XL clutch Drum with Ring Gear. *NOTE: Your existing clutch drum must have the OEM Ring gear welded in placed.

Notes:

• Required to use with 62 Tooth Clutch Drum with Starter Ring Gear Welded-On.
• Starter motor housing clearance motor case above sprocket case. Rear cylinder clearance for starter as shown. Use die grinder or 4inch Makita type disc grinder.
• Starter button may be used with starter button relay. VT Remote Starter Button includes 3 button head screws. Install before installation.
• Mount bolts included for attaching alloy mount plate 5/16inch x 18 hex (2) with washers.

Fitment:

Installation instructions (PDF)
