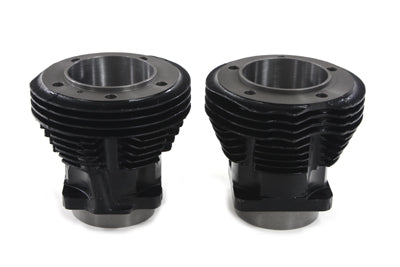

3-5/8 Cylinder Set - V-Twin 11-0380

Cylinders are stock height.

For installation of 3-5/8 inch cylinders after spigot holes have been enlarged. (See diagram for photos.) *NOTE: 3-5/8 inch cylinders are drilled to use with 4-1/2 inch and 4-1/4 inch stroke. Will require break in as suggested in the shop manual. These are cylinders only. Order pistons and rings separately. These cylinders will require crankcase cylinder spigot holes to be bored out to 3.8750 inch. Disassmbly of engine is required to install these cylinders. NOTE: The finished bore size should be 3.8750 inch to fit 3-5/8 cylinders. *NOTE: All cast iron cylinders have same piston to wall clearance.0025 -.003.

Measurements:

• Length: 6-5/8 inches

Fitment:

Installation instructions (PDF)
