45 WL Frame and Fork Kit - V-Twin 55-1699

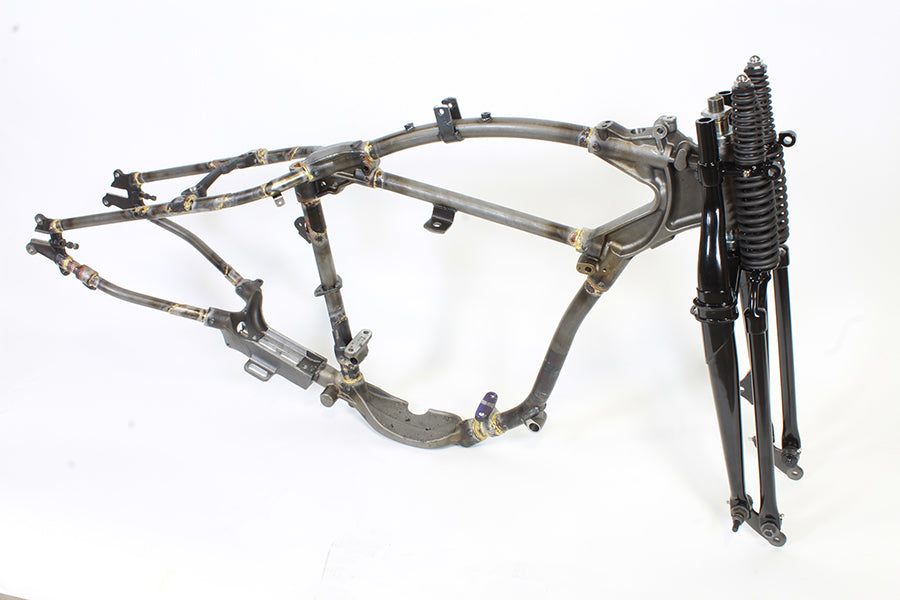

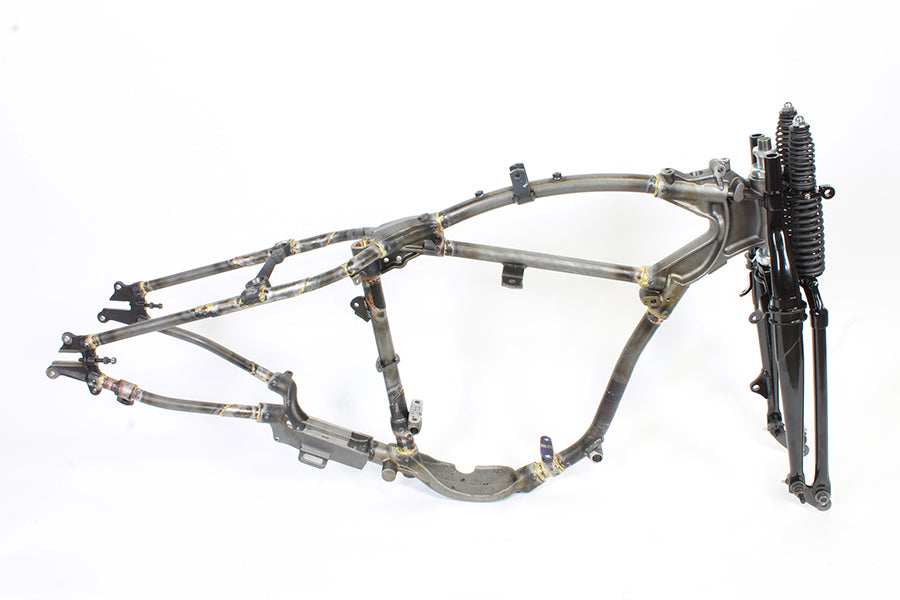

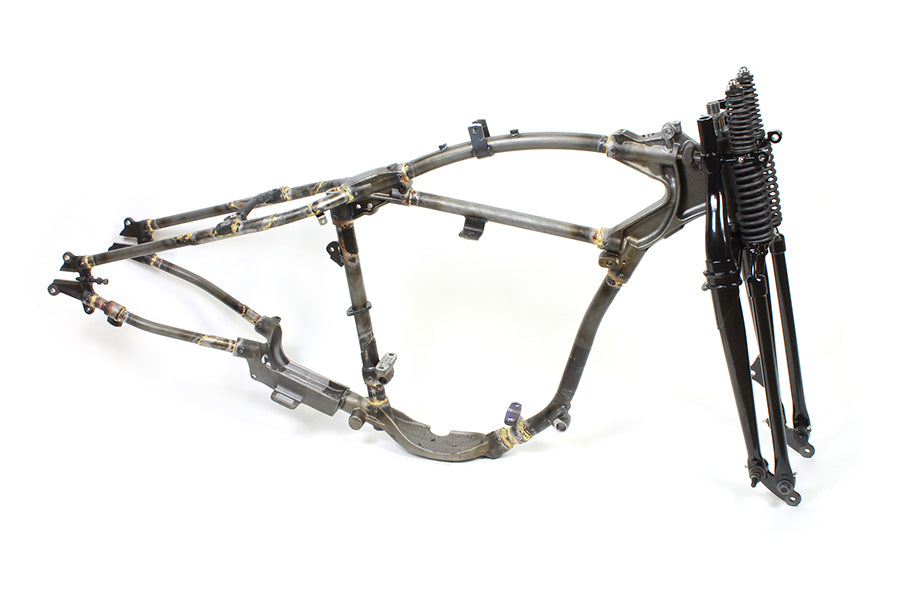

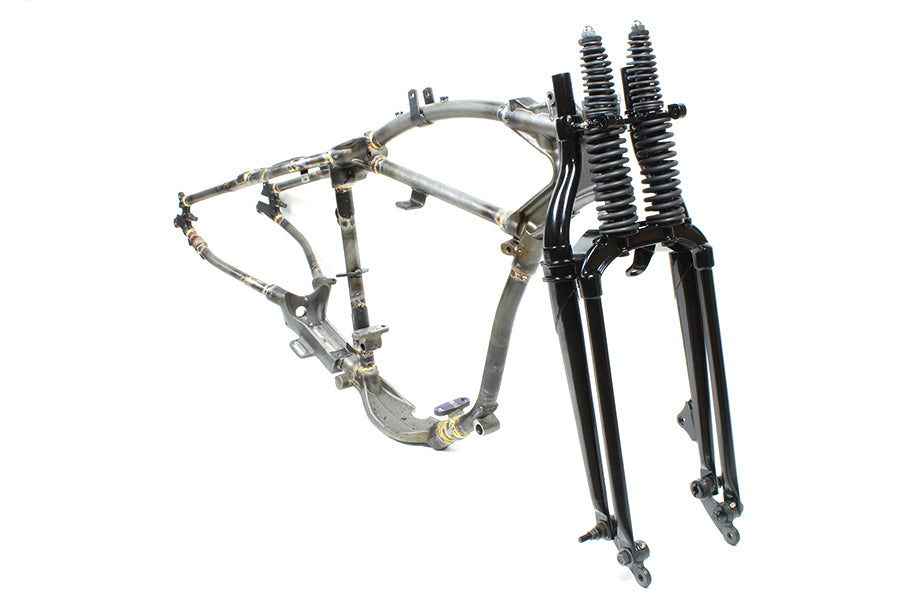

45 inch WL frame and fork kit includes a replica 45 inch W rigid frame a black 28 inch inline Spring Fork assembly and a zinc fork neck cup set.

The stock replica Spring Fork assembly accepts all original style components and accessories for a detailed restoration look. The 45 rockers are mounted inside of the fork legs and accepts a 3/8 inch diameter axle. The replica 45 W stock style rigid frame with brazed joints features a raw finish. There's no Manufacturere's Statement of Origin only a Bill of Sale. Don't forget the pre-assembly procedure! Before primer and paint the frame will require de-greasing. Frame accepts 3 bolt transmission case. Top frame tube has threaded inserts to attach center tank panels. Threads are for #8822-18 bolt set. Fork assembly includes inner and outer springs front and rear legs and spring rod with bushings. Top clamp neck races and cone nut are not included.

Notes:

• Suggested to use with 45inch Front Wheel Hub Internal Kit
• *NOTE: UPS may consider this part as packages inchoversizeinch for shipment as compared to the actual weight which will result in higher shipping costs.

Fitment:
