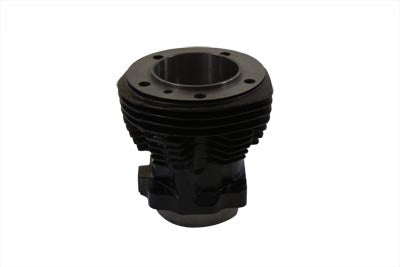

80 Shovelhead Front Cylinder - V-Twin 11-0496 - OEM 16498-80A

OEM #: 16498-80A

Front cylinder fits Shovelhead 1979-1985 80 inch models. Cylinders are for stock bore stock stroke and compression.

Sold each. Cylinders are 88.86mm bore with + or -.005mm range of tolerance and must be honed to standard size for proper fit. Pistons are not included. May require the use of a cylinder base nut set available separately. *NOTE: All cast iron cylinders have same piston to wall clearance.0025 -.003.

Measurements:

• Bore Size: 3-7/16 inches
• Bottom Flange I.D.: 3-5/8 inches

Notes:

• Suggested to use with #8601-8 Hi-Torque Cylinder Base Nut.

Fitment:
