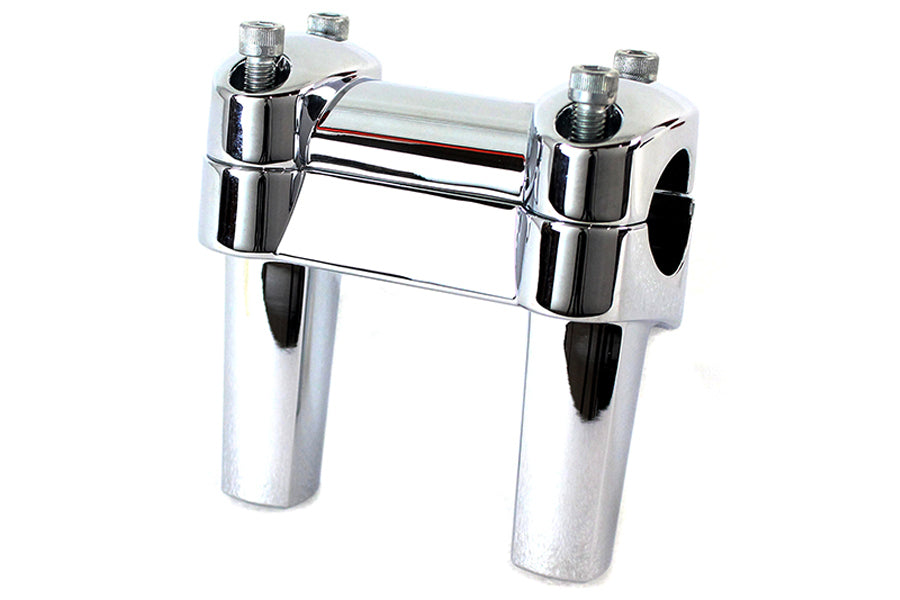

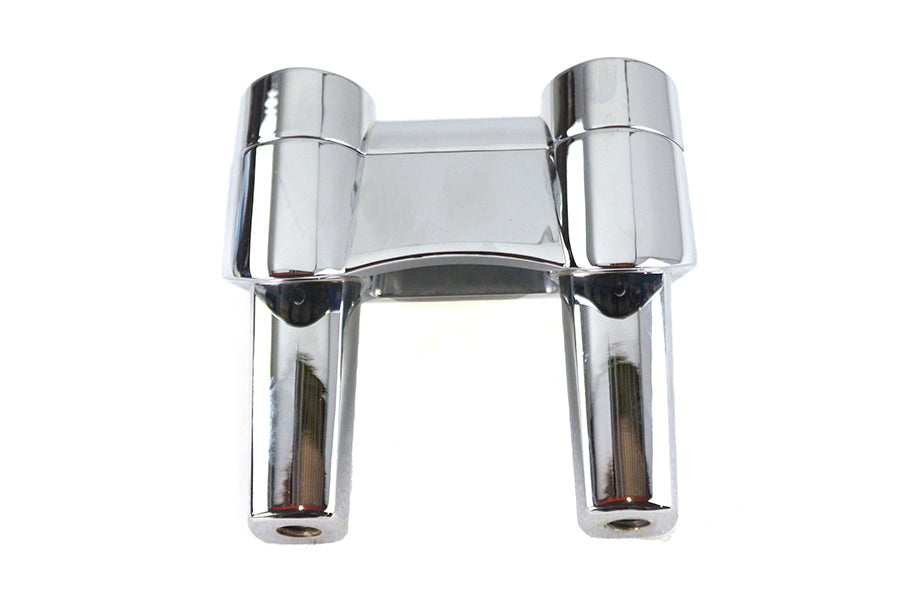

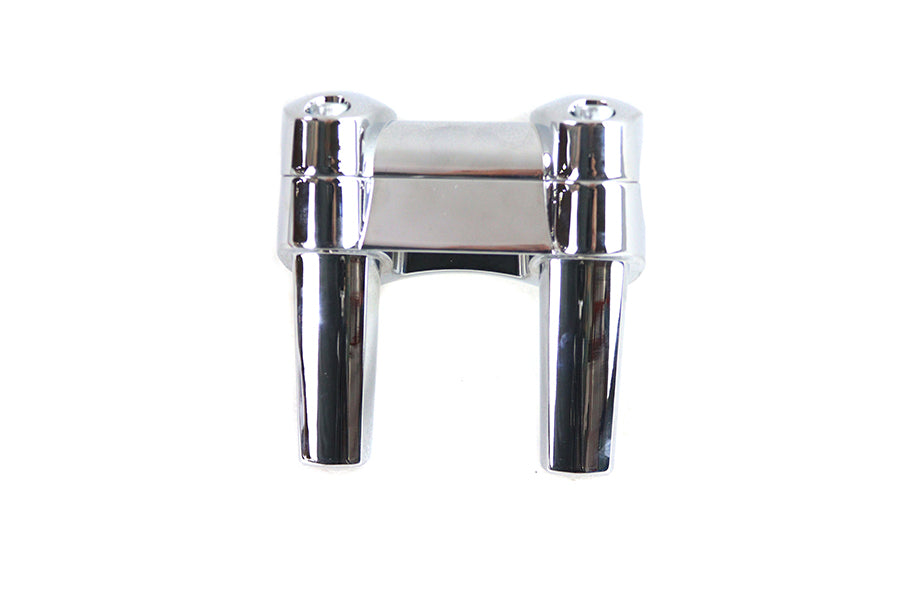

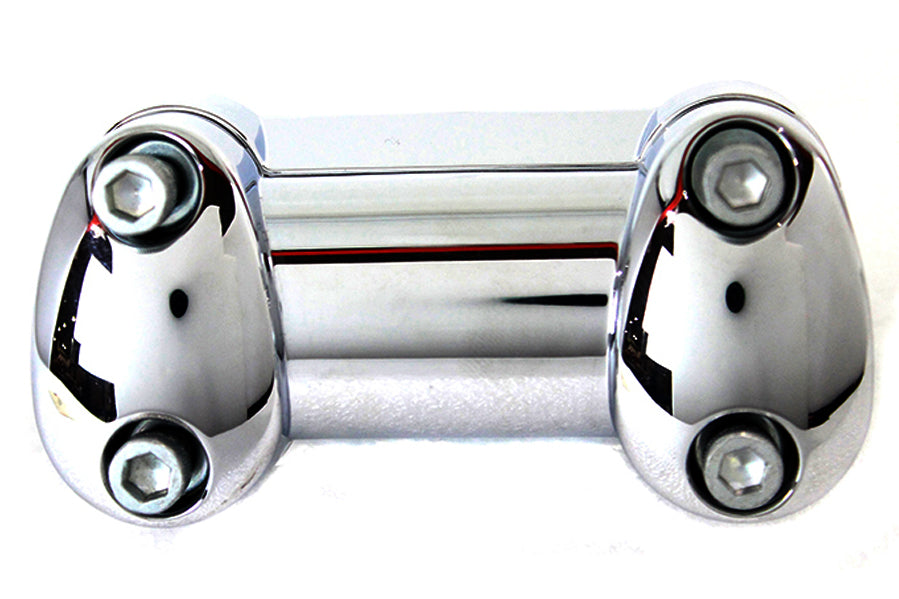

4.1 Fat Riser Kit Chrome - V-Twin 26-0011 - OEM 56929-10

OEM #: 56929-10

This riser features a one-piece base that is designed to be used with internally wired 1-1/4 inch handlebars and provides a skirt that conceals the wirings exit from the bar.

Includes riser matching handlebar clamp and the clamp hardware. Riser base is drilled and tapped for 1/2 inch-13 threaded bolts. *NOTE: List of OE additional parts are from existing motorcycle. *NOTE: May require the separate purchase of additional components. For 1 inch handlebars you must order the riser adapter sleeve spacer set separately.

Notes:

• ° OE cup washer (upper) (install flat side up) (2)
• ° OE Bushing (4)
• ° OE Spacer (2)
• ° OE cup washer (lower) (install flat side down) (2)
• ° OE flat washer (2)
• ° OE split lockwasher (2)
• ° OE ground wire
• ° OE internal tooth lockwasher
• ° OE rear mounting screw (2)
• ° Front clamp screw (2)
• ° Rear clamp screw (2)
• Suggested to use with 1-1/4inch Handlebar Riser Adapter Sleeve Spacer Set Chrome.
• Suggested to use with 1-1/4inch Handlebar Riser Adapter Sleeve Spacer Set Black.

Fitment:

Installation instructions (PDF)
