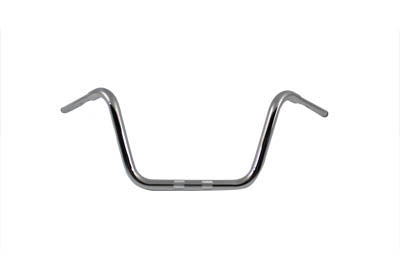

12 Rhino Ape Hanger Handlebar with Indents Chrome - MCM 31-0200AS

MCM #: 31-0200AS

These chrome handlebars are full 1-1/4 inch outer diameter. Handlebars are 1-1/4 inch at riser area and require 1-1/4 inch inner diameter handlebar riser.

These handlebars are 1-1/4 inch outer diameter at the riser area. Bars are indented at the grip area. The wire hole is located at the underside of the bar. *NOTE: For fitment application purchase 1-1/4 inch risers separately. Bars do not fit 2015-up FLTR Road Glide models. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.

Measurements:

• Rise To Grip Tip: 12 inches
• Rise To Center:
• Pull Back: 10 inches
• Width Tip To Tip: 37 inches
• Knurl: 2 inches
• Bar Diameter: 1-1/4 inches
• Center Width: 12-1/2 inches

Fitment:

Installation instructions (PDF)
