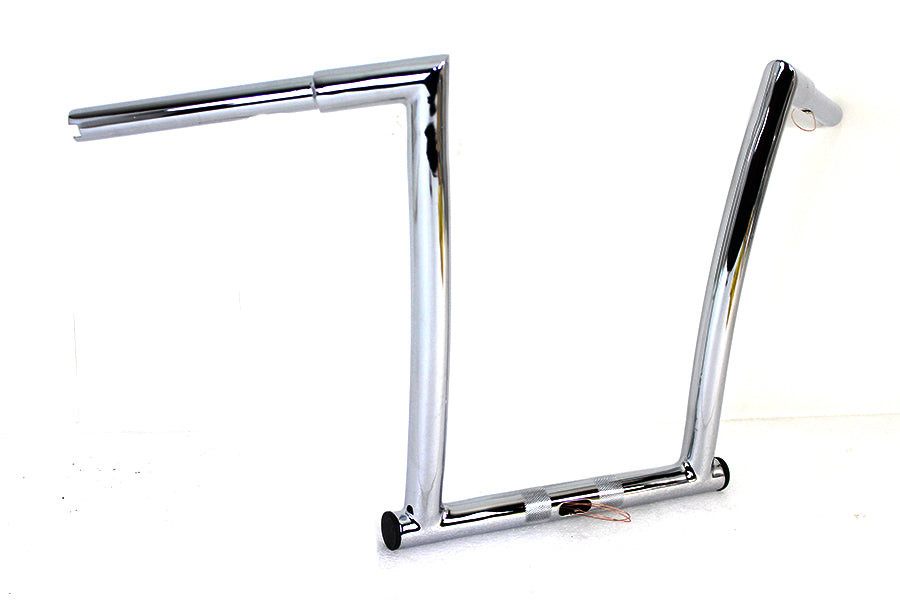

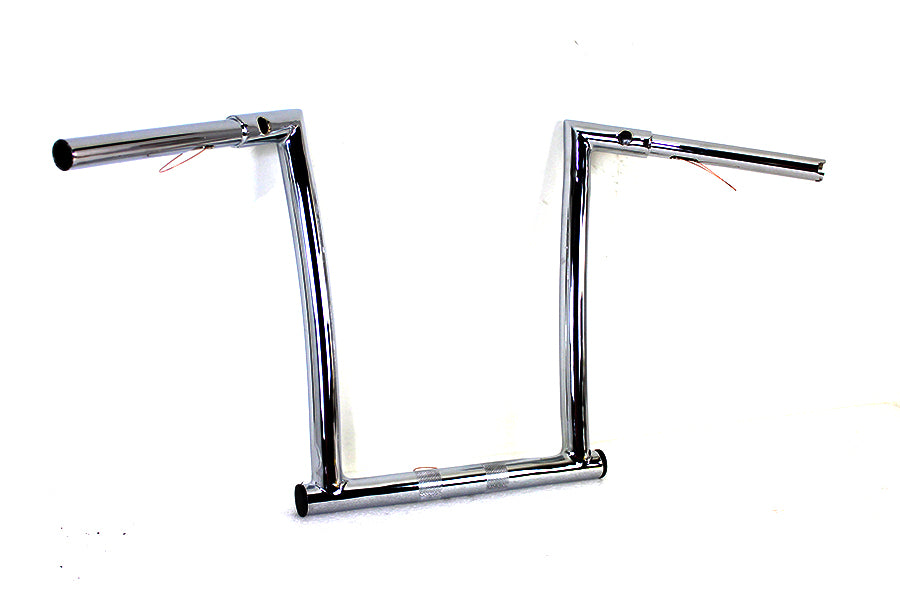

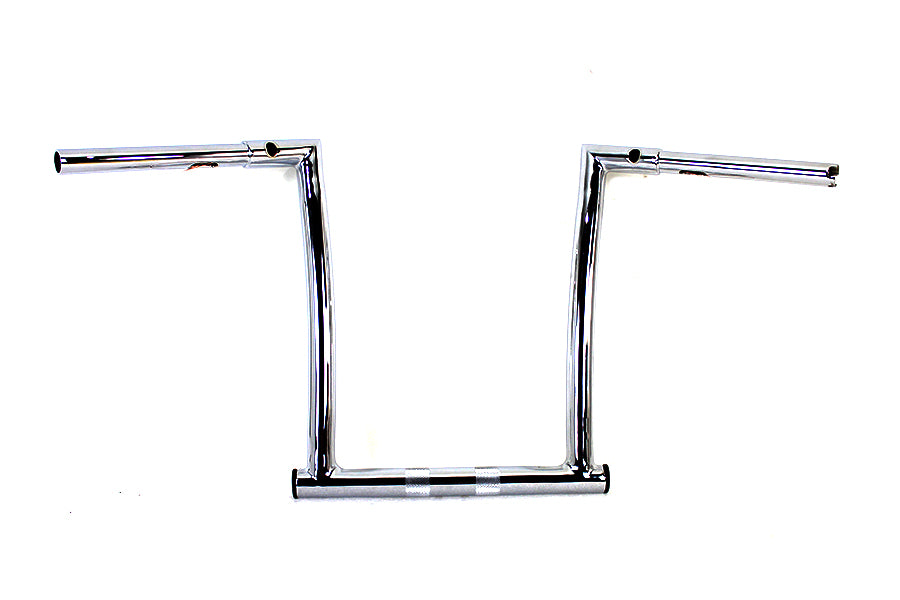

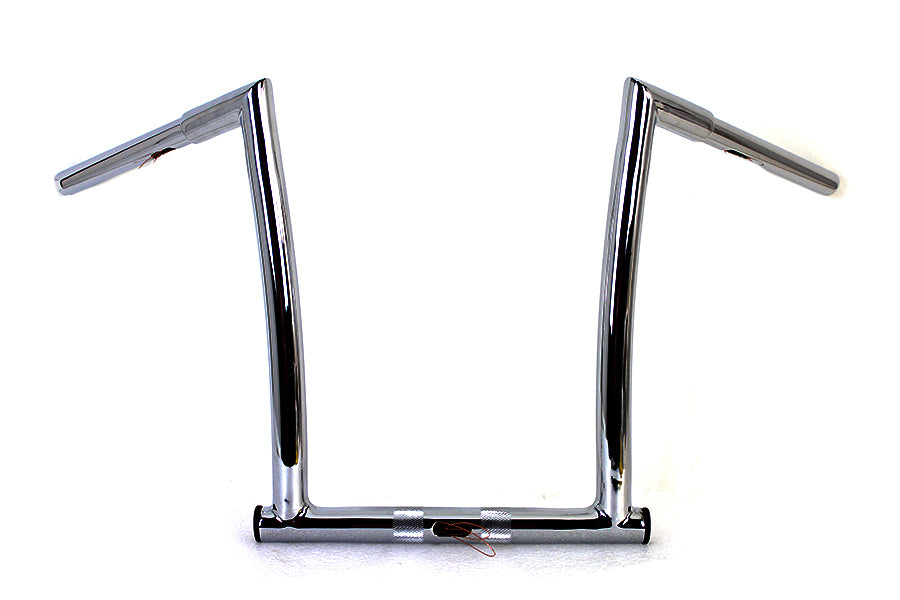

12 ChiZeled Z-Bar Handlebar Chrome - MCM 20270D - Twin Cam Touring 2015+
MCM #: 20270D
Chrome 1-1/4 inch handlebar with a 16 inch rise to center is indented to accept internal wiring with a 3 inch knurled center spacing. Handlebar is notched for throttle by wire applications.
ChiZeled bar replaces welded and mitered corners with cast seamless 90° bends for added strength and style. The cast elbows features removable plugs to simplify internal wiring and eliminates sharp internal bends. The 1-1/4 inch diameter at the clamping area is for use with 2015-up FLTR Roadglide models and features a front oval wire hole. The front exit hole is used to wire full 1-1/4 inch tubes at the riser clamp area. ChiZeled bars have cross bar to aid in wiring routing. *NOTE: Additional components requred must be ordered separately. **NOTE: For reference original bars on 2015-up FLTR is OEM #55800332 and is 9 inch tall. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.
Measurements:
- Diameter: 1-1/4 inches
- Width Tip-to-Tip: 31 inches
- Center Width: 12-1/2 inches
- Knurl: 3 inches
- Rise: 14 inches
- Pull Back: 6-1/4 inches
Fitment:
| 2015-UP | FLTR |
