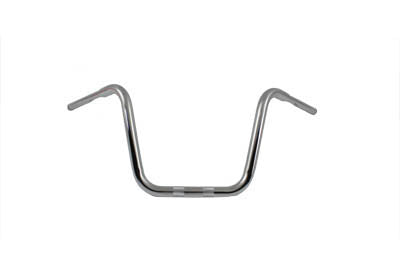

12-1/2 Rhino Ape Hanger Handlebar with Indents Chrome - MCM 31-0165AS

MCM #: 31-0165AS

This chrome handlebar features a 1-1/4 inch outer diameter tubing except at grip area and requires 1-1/4 inch inner diameter risers. It features indents and holes for internal wiring.

These handlebars are 1-1/4 inch outer diameter at the riser area. Bars are indented at the grip area. The wire hole is located at the underside of the bar. *NOTE: For fitment application purchase 1-1/4 inch risers separately. Bars do not fit 2015-up FLTR Road Glide models. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.

Measurements:

• Rise To Grip Tip: 14 inches
• Rise To Center: 12-1/2 inches
• Pull Back: 13 inches
• Width Tip To Tip: 35-1/2 inches
• Knurl: 2 inches
• Bar Diameter: 1-1/4 inches

Fitment:

Installation instructions (PDF)
