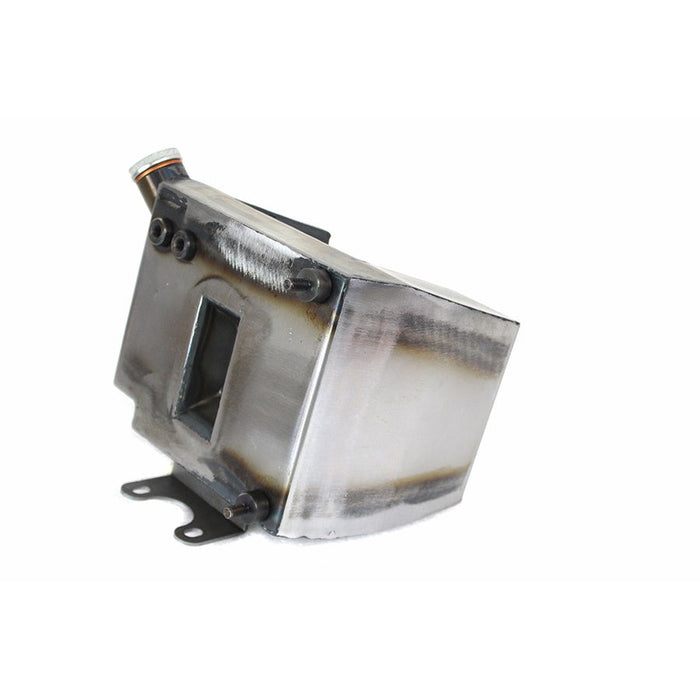

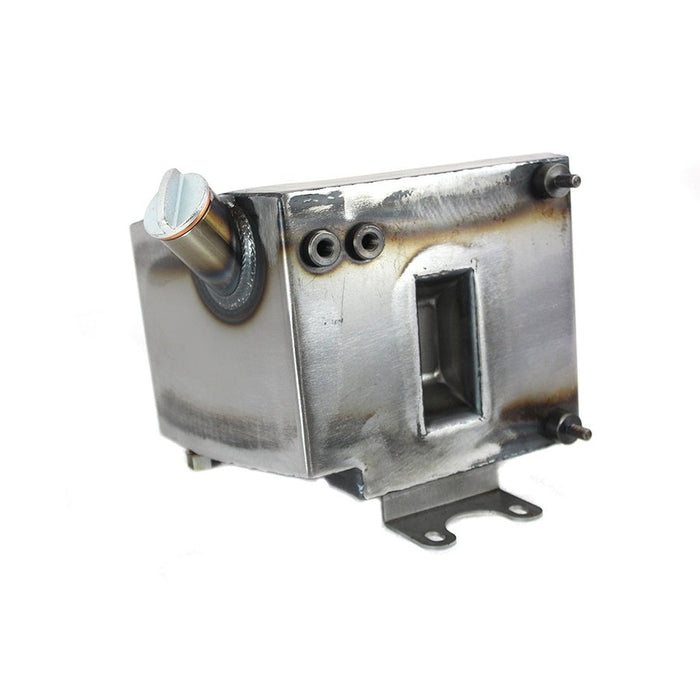

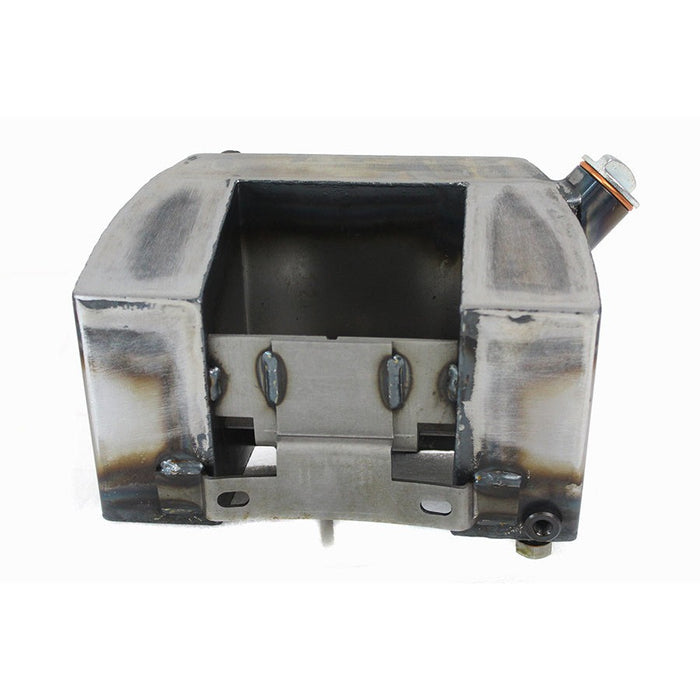

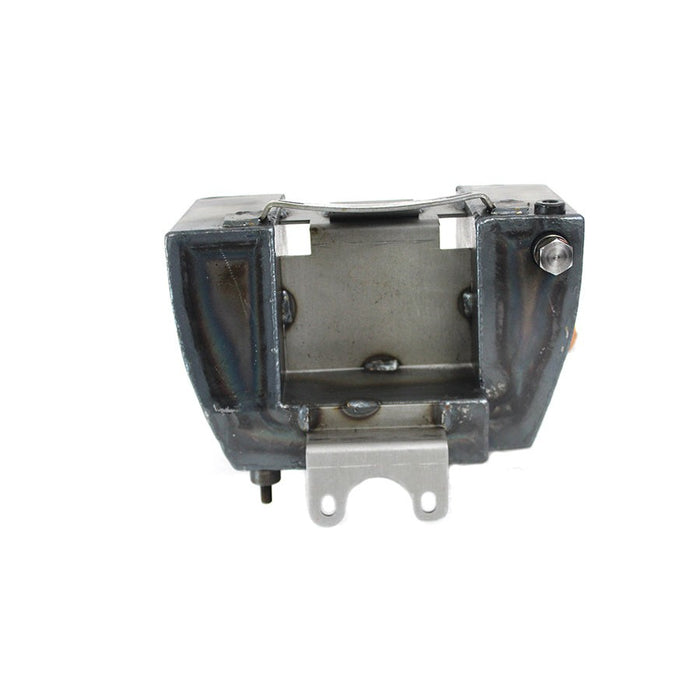

45 WL Raw Side Fill Wrap Around Oil Tank - V-Twin 40-0964

Raw WL side fill oil tank features 1/8 inch NPT inserts to accept rubber oil lines 2 coil mounting studs on the left side and the battery box to accept 12 volt mini batteries.

Tank also has a pocket built into the front of the tank to allow clearance of the stock battery box mount on the frame. Includes threaded filler cap and drain plug. Battery compartment measures: 3-3/4 inch deep x 4-7/8 wide x 4-1/4 high. *NOTE: Must order connector fittings separately. *NOTE: There is no need to remove the battery box tab!

Measurements:

• Tank Overall Length: 10-1/8 inches
• Tank Overall Width: 6 inches
• Tank Height: 6 inches
• Battery Depth: 3-3/4 inches
• Battery Height: 4-1/4 inches
• Battery Width: 4-7/8 inches

Notes:

• Suggested to use with Anti Gravity 12 Volt 16 Cell Battery.
• Suggested to use with Mini 12 Volt Battery.

Fitment:
