Replica HM" Straight Leg Rigid Frame - V-Twin 51-1955

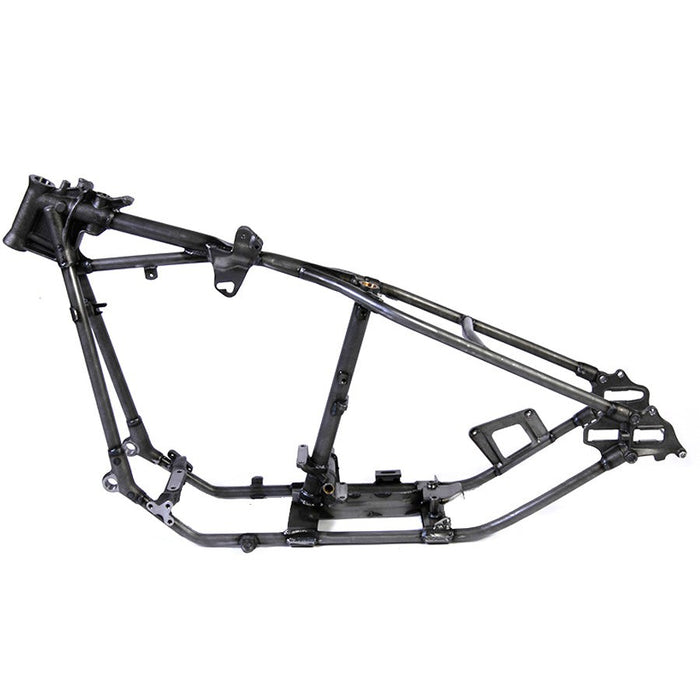

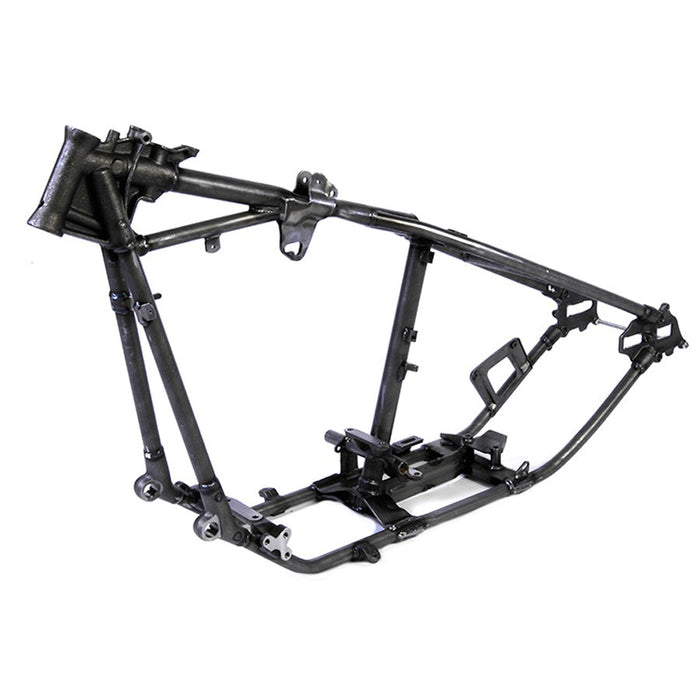

Replica inchHM inch straight leg rigid frame is an authentic reproduction of the 1954-1957 straight leg frame with stock 30° neck rake.

Features cross tube to accept mechanical rear brake assembly with a star hub wheel with chain drive. Forged parts include: neck front and rear engine mount side car mounts top seat yoke and footboard tabs. This mechanical frame will accept a neck lock. Front engine mount spacer will allow installation of a Knucklehead or Flathead engine. Frame will accept all Panhead and Shovelhead engines. *NOTE: Cross shaft seat post transmission plate and rear axle assembly are included. *NOTE: Must order tapered bearing neck cups separately. *NOTE: This inchHM inch type has forgings with original markings. V-Twin MFG supplys a Bill of Sale only referencing the part number. *NOTE: V-Twin replica frame now has forged parts with hallmark numbers and marks in these positions: seat yoke side car loops rear axle plates and transmission front and rear motor mounts.

Notes:

• In some instances it may be necessary to ream or file holes slightly in order to assemble parts onto the frame.
• Use Front Engine Mount Spacer to accept 1936-1947 Kucklehead or Flathead engines in 1948 - up frames.
• Features Replica Tool Box Mounting Bracket.
• *NOTE: Replica inchHMinch is our updated version with forging hallmarks on many of the components.

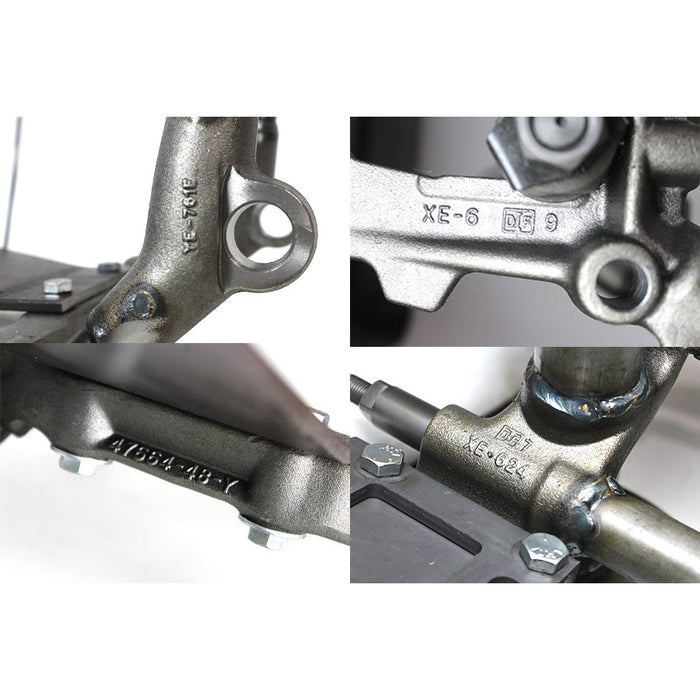

• *NOTE: Features the following forged parts with HallMark numbers and marks: seat yoke front motor mount side car loops rear axle plates and transmission front/rear mounts.
• Required to use with Zinc Fork Neck Cup Set with Races.

Fitment:
